chip set

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions

internal storage

capacity

4GB SO-DIMM 1xDDR4 2400 MHz memory ,  Max.32GB

memory

SATA interface

M.2

2.5-inch HDD (optional)

1Xm.2 NGFF/NVME

show

Integrated Graphics

output

Intel® UHD Graphics integrated graphics card on the CPU

2* HDMI(ͬ²½/asynchronous/tiled display modes)

1 ¡Á HDMI 2.0 (Maximum supported resolution: 4096x2304 at 60 Hz)

1X DP1.4 (Supports resolution: 4096¡Á230460 Hz) 4K

LVDS/EDP

network

Chip

WIFI

1 ¡Á 10/100/1000M (2*RJ45 ports optional)

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

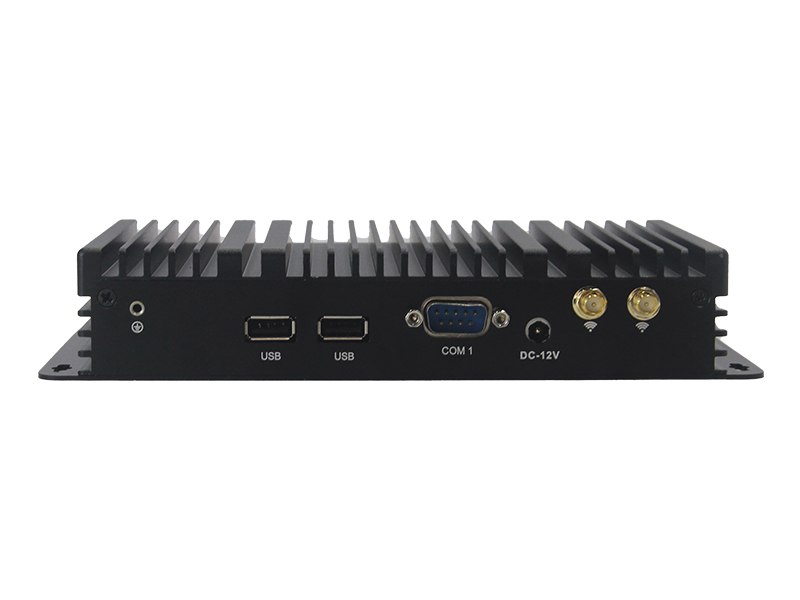

I/O

USB 3.1

U2B2.0

Type-c

Power button

COM

LED lamp

One-click restoration

DC JACK

audio frequency

4x USB3.1

2x USB2.0

1x Type-C (optional RJ45 LAN)

1 ¡Á power button

1 ¡Á RS232 COM (2 options available)

            1 x power indicator light & 1 x hard drive indicator light

            1 x One-click restore of the hardware system

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC  12~19V

45-90W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

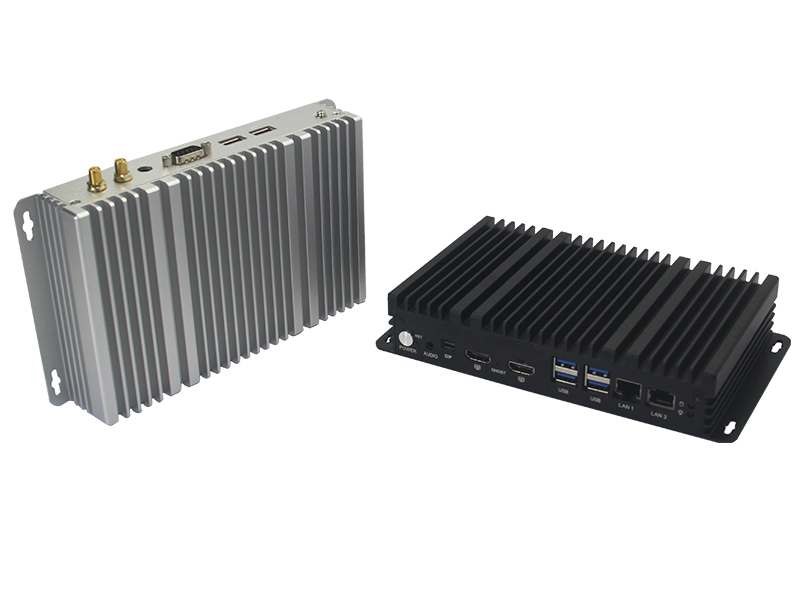

size

211mm (L) x 120mm (W)x38mm(H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -20¡ãC to 70¡ãC

5%~90% no condensation

operating system

edition

Windows 10/Windows 11 / Linux

AOS-SIN1041S2D

CPU: N100; 4GB RAM; 128GB SSD

AOS-SIN15041S2D

CPU: N150; 4GB RAM; 128GB SSD

AOS-SIN9741S2D

CPU: N97; 4GB RAM; 128GB SSD

AOS-SIN9541S2D

CPU: N95; 4GB RAM; 128GB SSD

AOS-SIN10541S2D

CPU: N105; 4GB RAM; 128GB SSD

AOS-SIN20041S2D

CPU: N200; 4GB RAM; 128GB SSD

AOS-SIN30041S2D

CPU: N300; 4GB RAM; 128GB SSD

AOS-SIN30541S2D

CPU: N305; 4GB RAM; 128GB SSD
