chip set

Intel® SOC

BIOS

AMI 32 Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog functionality, and more.

internal storage

capacity

4GB SO-DIMM DDR3 1600MHz memory ,  Max.8GB

4GB SO-DIMM DDR4 2133 MHz memory ,  Max.16GB

memory

SATA Interface

MSATA

1*SATA

128G SSD

show

chip set

output

CPU-integrated graphics card: HD Graphics

HDM + VGA single display; dual displays (ͬ²½/asynchronous display)

1 ¡Á HDMI (Maximum supported resolution: 920x1080)

1 ¡Á VGA (Maximum supported resolution: 1920x1080)

network

Chip

WIFI

2 ¡Á 10/100/1000 Mbit/s (Supports up to 2 RJ45 LAN ports)

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

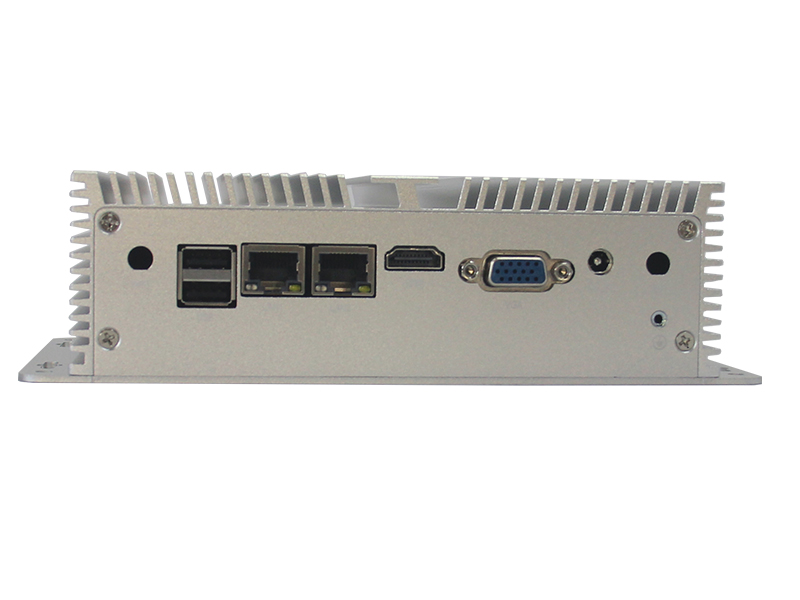

I/O

USB 3.0

USB 2.0

Power button

COM

RJ45

LED lamp

DC JACK

audio frequency

4x USB3.0

2¡Á USB2.0

1 ¡Á power button

2 ¡Á COM (قابل to expand to 4 groups)

            2 ¡Á RJ45

1 x Power indicator light & 1 x Hard drive indicator light

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, featuring the integrated 6-channel audio effect ALC662 sound card chip

source

import

rated dissipation

DC  12V

45W

watchdog

output

margin

Intermittent, system restart

Level 255 Fixed Time Interval

Physical Parameters

size

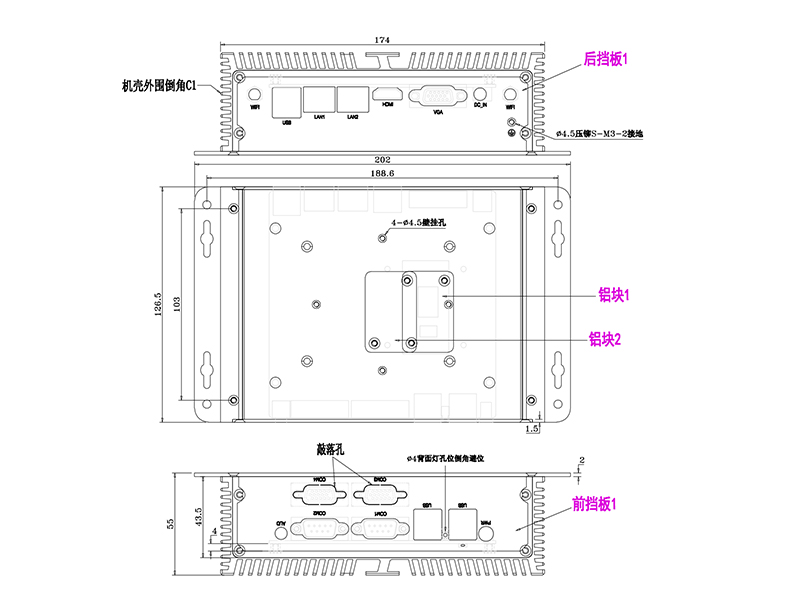

202mm (L) x 126.5mm (W)x55mm(H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -20¡ãC to 70¡ãC

5% to 90% with no condensation

operating system

edition

Windows 10/Windows 7 / windows8 / Linux

Core Union Series

Intel Core U series built-in CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, I3-5005U

I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U

I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/

I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7

I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P

I5-12450H/I7-12800H/I5-13500H/I7-13260H/I5-12450HX/I5-12600HX/I5-13500HX

Ultra series: Ultra3, Intel Ultra5 125H/135H/135U, Ultra7 155H/155U/255U/H, Ultra9 185H/185U/285U/H
