chip set

Intel® SOC

BIOS

The AMI8M BIOS supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features.

internal storage

capacity

1*SO-DIMM DDR3L1600MHz     Memory,  Max.8GB

memory

SATA interface

MSATA

Extension Slot

1 x 2.5-inch SATA 2.0

1*M-SATA

1*MINI-PCIE(forM-SATA/WIFI)

show

chip set

output

CPU-integrated graphics card: HD Graphics

HDM+VGA single display; dual displays (synchronous/asynchronous display)

1 ¡Á HDMI (Maximum supported resolution: 920x1080)

1 ¡Á VGA (Maximum supported resolution: 1920x1080)

network

Chip

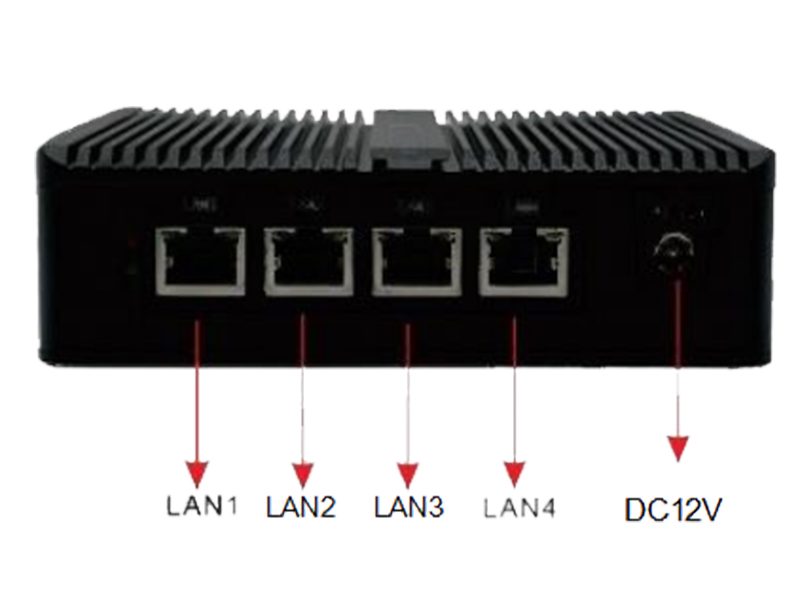

4 ¡Á 10/100/1000 M (Supports up to 4 RJ45 LAN ports)

Intel 1211-AT Gigabit network card

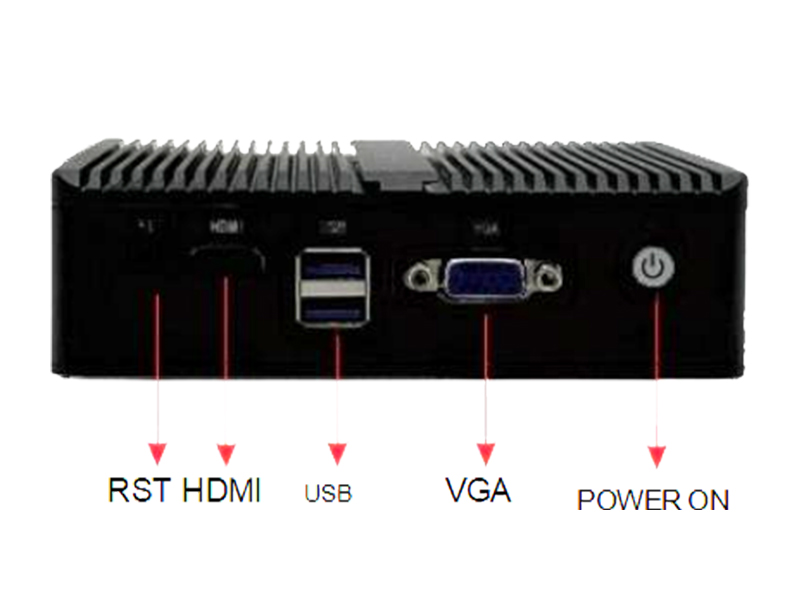

I/O

USB 3.0

Power button

LED lamp

DC JACK

audio frequency

2x USB3.0

1 ¡Á power button

            1 x power indicator light & 1 x hard drive indicator light

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, featuring an integrated 6-channel audio ALC662 sound card chip

source

import

rated dissipation

DC-IN  12V 5A

60W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

sheathing material

pigment

way to install

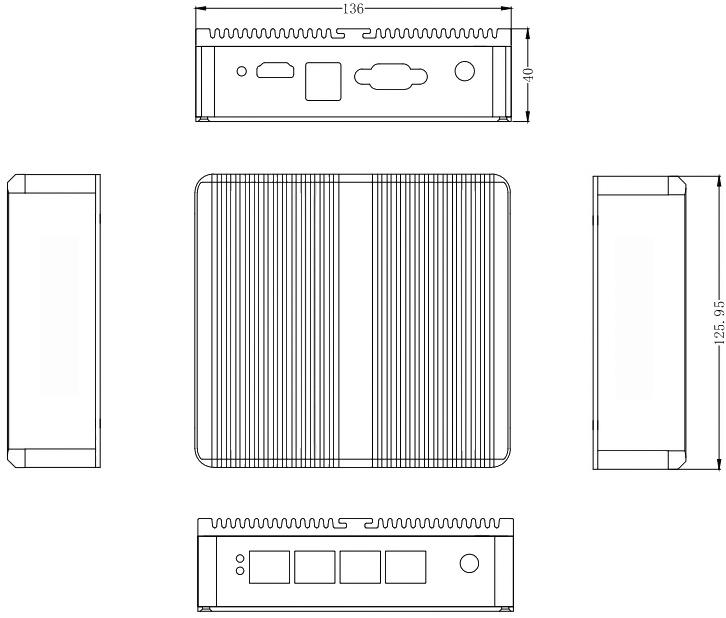

126mm (L) x 136mm (W)x40mm(H)

Aluminum profile

Black, Gray

Desktop placement

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -15¡ãC to 60¡ãC

0%~95% No condensation

operating system

edition

Windows 7/10/Linux

AOS-SIJ1941SBMC4

Intel Pentium J1900,2.0 GHz, 4 GB RAM, 128 GB SSD

AOS-SIJ1841SBMC4

Intel Celeron J1800,2.41 GHz, 4 GB RAM, 128 GB SSD

AOS-SIN28232BMC4

Intel Celeron N2840,2.16 GHz, 2 GB RAM, 32 GB SSD
