AOS-SXH61I41SR
Product introduction：
Specification Parameters
processor | CPU | Intel Core U series processors with full board-level integration, featuring domestic indigenous chipsets including Phytium, Zhaoxin, and Hygon. |
chip set | Intel® H610/B660/Q670 SOC | |
BIOS | The AMI 32Mbit model supports diskless boot, network wake-up, power-on startup, watchdog functionality, and other features. | |
internal storage | capacity | 4GB SO-DIMM DDR4 2400MHz memory , Max.32GB |
memory | SATA joggle MINI PCIE M.2 |
1Xm.2 PCIE 128G M.2 SSD NGFF |
show | chip set output
| CPU-integrated graphics card HD Graphics VGA+HDMI single display, dual display (synchronous/asynchronous display) 1 × VGA (maximum supported resolution: 1920×1080) 1 × HDMI (Supports maximum resolution: 4096x2304) |
network | slug WIFI | 1 × 10/100/1000M（RJ45 LAN） 1 x WIFI Module support 802.11b/g/n （M.2 PCIE half card） |

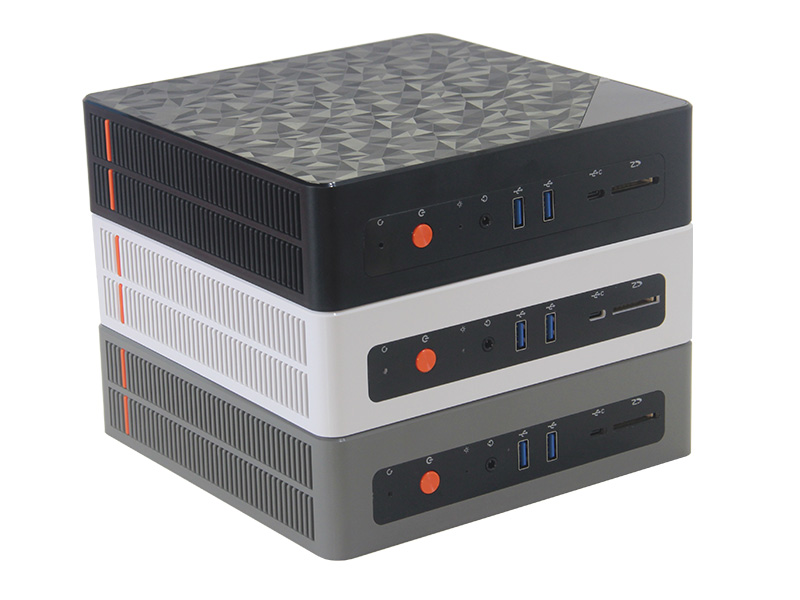

I/O | USB 3.0 USB 2.0 COM Type-C SD card reader Power button Reset LED lamp DC JACK audio frequency | 4x USB3.0 2× USB2.0 1x COM (Optional) 1 ×Type-C 1 × SD card reader 1 × power button 1 × Reset button 1 x power indicator light & 1 x hard drive indicator light 1 × 19V DC JACK 1 × LINE-OUT & MIC-IN |
source | import rated dissipation | DC 19V 90W |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Interval |
Physical parameters | size | 201mm (L) x 202mm (W) x 55.5mm (H) |
environment | temperature humidity | Operating temperature: 0°C to 50°C Storage temperature: -20°C to 70°C 5%~90% without condensation |
operating system | edition | Windows 7 / windows8 /Windows 10/Windows 11/ Linux Optional operating systems: Linux QT/Debian 11/Ubuntu-20.04, UnionTech UOS, and OpenHarmony 4.0 Kirin/UOS/Zhongke Fangde/Linux |
Order information
Sales model | explain |
ATOM series | J1800/J1900/J2900 CPU N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040 J6413/J6412/J6426/N5095 N95/N97/N100/N105/N200/I3 N300/I3 N305 |
Core Union Series | Intel Core U series onboard CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, and I3-5005U. I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/ I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7 I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P I3-2310M/I3-2330M/I3-2370M/I3-3110M/I5-2410M/I5-2520M/I5-3210M/I5/3340M/I5-3380M /I7-2620M/I7-3520M I3-4000M/I5-4200M/I5/4310M/I5-4300M/I7-4600M I5-12450H/I7-12800H/I5-13500H/I7-13260H/I5-12450HX/I5-12600HX/I5-13500HX Ultra series: Ultra3, Intel Ultra5 135H/135U, Ultra7 155H/155U, Ultra9 185H/185U |
Domestic series CPU | Feiteng series CPUs: FT-2000, FT-D2000, FT-D3000 Zhaoxin series CPUs: KX-6780A, KX-6580, KX-6640A, KX-6640MA, KX-7000 HaiGuang series CPUs: HG-3230, HG-3350, HG-3450 |
Core S Series | Intel Core S-series desktop CPU: Intel® H810: I3-4130/ i5-/4590S/4590T/4570T/4430; I7-4770 LGA1851 Core™ Ultra 2 Series processors including Ultra9, Ultra7, and Ultra5 models Intel® H110/Z170: i3-6100/I5-7400/i5-8400T/I9-9900，Intel® H310: i3-8100/I9 9900X Intel® H510: i3-10100/i5-10400 /i5-11400 /i7-11700/i9-11900 Intel® H610/B660/Q670: i3-12100/i5-13400/ i7-13700/ i9-13900/I7-14700 |
