chipset

Intel® SOC

BIOS

The AMI is 32Mbit and supports disk-free startup, wake up on the network, power-on, and watchdog functions

Internal memory

capacity

4GB SO-DIMM DDR4 2400MHz memory ,  Max.16GB

store

SATA interface

M.2

1*SATA

128G SSD 2280 NVME/NGFF

reveal

chipset

exportation

CPU integrated Graphics card HD Graphics

HDM+DP single display, dual display (same/asynchronous display)

1 ¡ÁHDMI (Max support resolution: 3840x2160)

1 ¡Á DP (Max support resolution: 3840x2160)

network

chip

WIFI

4 ¡Á   2.5G INTEL I225/I226£¨Maximum support 4*RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨MINIPCIE -4G£©

I/O

USB 3.0

USB 2.0

Power button

Reset

  COM

LED light

DC JACK

Audio frequency

2x USB3.0

4¡Á USB2.0

1 ¡Á power button

1 ¡Á Reset button

2 ¡Á  COM(One of the groups is optional RS485)

            1 x Power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN Integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  12V

45W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

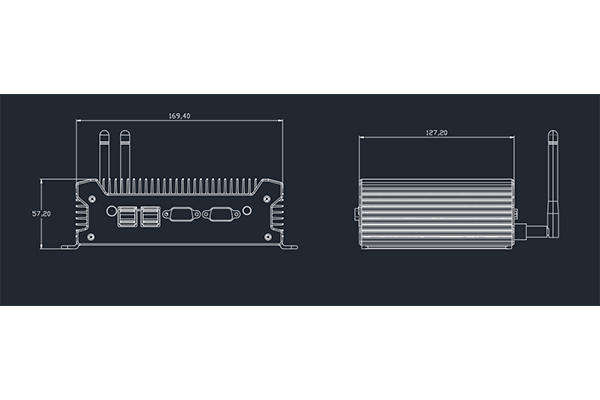

169mm (L) x 127mm (W)x57mm(H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/11/Linux

AOS-SIN1041SBC4

AOS-SIN9541SBC4

AOS-SIN9541SBC4

Intel Celeron N100  0.8 GHz   4Gmemory    128G SSD

Intel Celeron N95             4Gmemory    128G SSD

Intel Celeron N97             4Gmemory    128G SSD
