AOS-OPSCHPLDI
Product introduction：
Specification Parameters
show | JLVDS1 JS1-6
HDMI IN | 1 × LVDS1/DP (optional) 1 ×HDMI out 1 × HDMI IN (for signal capture) 1 × HDMI IN (signal source switching) | ||
I/O | USB2.0 USB 3.0 internet access switch JUART1 J-SW1 JP9 JP10 JINCN1 JGHOST1 JPWRLED1 JDET OPS Interface audio frequency
| 5× USB2.0， 1xUSB3.0 1 XRJ45 Gigabit network port (with optional dual-layer USB 2.0) 1XPOWER switch 1×COM TTL (4-pin pin, 2.0 pitch; signal definitions: VCC (5V), GND, U-TX, U-RX) 1× Switch pin/Reset (Signal definitions: PS-ON, GND; REST, GND) 1×3-pin connector with optional 3.3V/5V power supply (signal definition: 3.3V (pins 1–2),5V (pins 2–3)) 1×2-pin 12V power supply (Signal definition: 12V (1-2) JP9; select voltage according to screen requirements) 1X6PIN high-voltage board power supply (signal definition: 19V,19V PWM, BLK_EN, GND, GND) 1X2PIN One-Touch Restoration 1x2PIN power indicator light 1X2PIN (Signal definition: FAN_CTRL LED_DET) OPS 80 pin 1 × LINE-OUT 3.5/line in standard interface, supports dual-channel output
| ||
source | import | DC JACK (19V,2.5mm inner diameter) On-board 4-pin socket (12–19 V) | ||
Physical Parameter | size | Thin Mini-ITX，170x63mm | ||
environment | temperature humidity | Operating temperature: 0°C to 60°C Storage temperature: -20°C to 70°C 5%~90% no condensation | ||
Order Information
AOS-OPSCHPLDI | 5 USB 2.0 ports, 1 USB 3.0 port; HDMI + DP/LVDS display options available; 3W power amplifier |

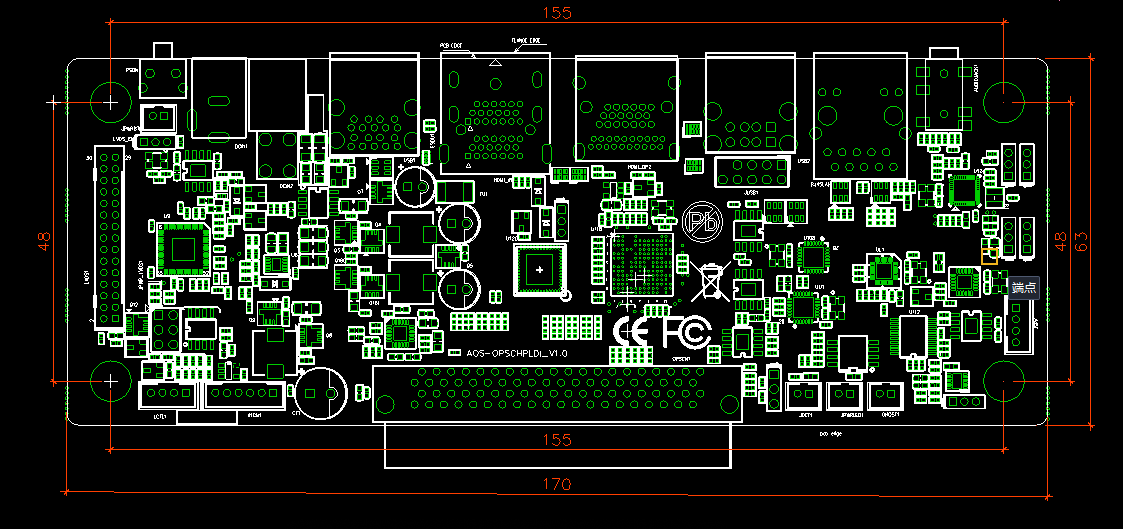

Dimensional Structure Diagram
