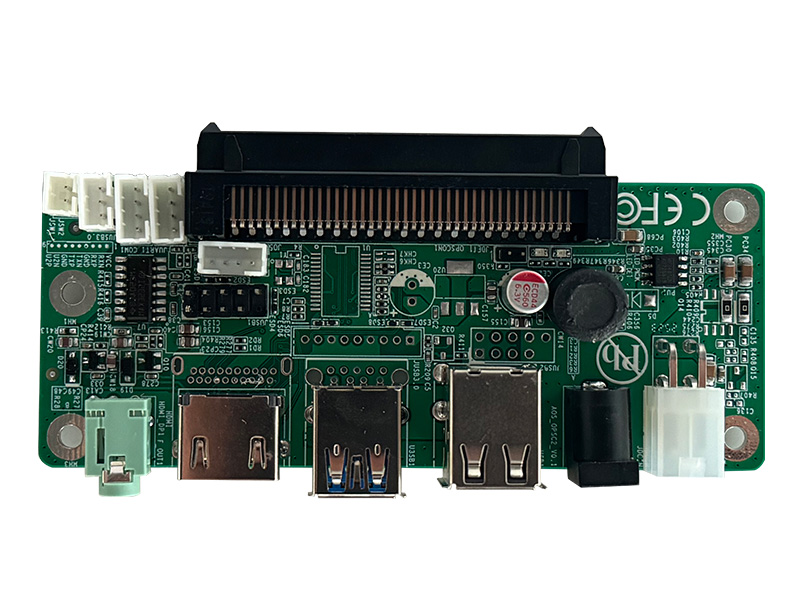

AOS-OPSC2
Product introduction：
Product introduction
2 USB2.0 ports
1 USB3.0 port (with pin)
HDMI output
Standard Audio port (LINE-OUT)
DC JACK 12-19V
Support RS232 COM (optional)
Product complies with EU ROHS standards
Dual power input 12V~19V input
Specifications
show | Output | 1 ×HDMI
| ||
I/O | USB 2.0 USB 3.0 COM J-SW1 J-SW2 JOS Power button OPS interface Audio | 2× USB2.0， 1xUSB3.0 1×JUART1（4 pin Pin, 2.0 pitch, signal definition：VCC(5V) GND U-TX U-RX） 1×COM1（4pin Pin, 2.0 pitch, RS232 serial port） 1× switch pin（Signal Definition：PS-ON，GND） 1×power on detection pin (3pin, Signal Definition： PWR-Status GND PS-ON) 1XLED灯+RESET(Need to be modified with the motherboard to use) 1 ×Power button (switch) OPS 80 pin 1 × LINE-OUT 3.5 standard interface, supports dual-channel output
| ||
power supply | Input | DC JACK (19V, 2.5mm inner diameter) Onboard 4pin socket （12 ～ 19V） | ||
Physical parameters | size | Thin Mini-ITX，133x44mm | ||
environment | Temperature Humidity | Operating temperature: 0°C ~60°C Storage temperature: -20~70°C 5%~90% non-condensing | ||
Ordering Information
Sales Model | illustrate |
AOS-OPSC2 | JAE OPS 80PIN,2 USB2.0,1 USB3.0,HDMI display output |
Dimensions and Structure
