AOS-OPSCL1A
Product introduction：
Display | JLVDS1 JS1-6 | 1 ×LVDS 1 ×HDMI（optional） lVDS and HDMI optional pin socket |
I/O | JUSBPWR1 USB2.0 USB 3.0 Ethernet port Switch JUART1 J-SW1 J-SW2 JO5 JP9 JP10 JBKLT1 JSPK JDET OPS interface Audio JS1-JS5, JO6 | 1x3PIN USB optional charged or unchanged (Signal definitions：1-2charged，2-3 unchanged) 4× USB2.0， 1xUSB3.0 1XRJ45 100M internet access 1XPOWER switch 1×COM TTL（4pin，2.0 space，signal definition：VCC(5V) GND U-TX U-RX） 1× Switch pin / reset （signal definition：PS-ON，GND；REST,GND） 1× switch detection pin (4pin, signal definition： PSON GND PSOK VCC3) 1XHDMI CEC pin；(NC CEC VCC) 1X3PIN 3.3V/5V power optional (signal definition：3.3V（1-2）,5V(2-3)) 1X2PIN 12V power (signal definition：12V(1-2)JP9 JP9 according to display to choose voltage 1X6PIN High voltage supply power (signal definition：19V 19V PWM BLK_EN GND GND) 1X4PIN 3W-4OHM power amplifier signal definition：SPKR- SPKR+ SPKL- SPKL+) 1X2PIN (signal definition：FAN_CTRL LED_DET) OPS 80 pin 1 × LINE-OUT standard interface, supports dual-channel output Optional HDMI pin HDMI IN(1-2)、LVDS(2-3)、OUT(1-3) |
Power | Input | DC JACK (19V, 2.5mm inner diameter) on-board 4pins socket（12 ～ 19V） |
Physical Parameter | Dimensio | Thin Mini-ITX，133x44mm |
Condition | Temperature Humidity | Working temperature：0°C ~60°C Storage temperature：-20~70°C 5%~90% No condensation |
Ordering Information
Sales Model Specification
AOS-OPSCL1 JAE OPS 80PIN, 2 pcs USB2.0, 1 pcs USB3.0, LVDS output
AOS-OPSCL1A RJ45 100M ethernet port, 4 pcs USB2.0, 1 pc USB3.0, HDMI/LVDS optional, 3W power amplifier

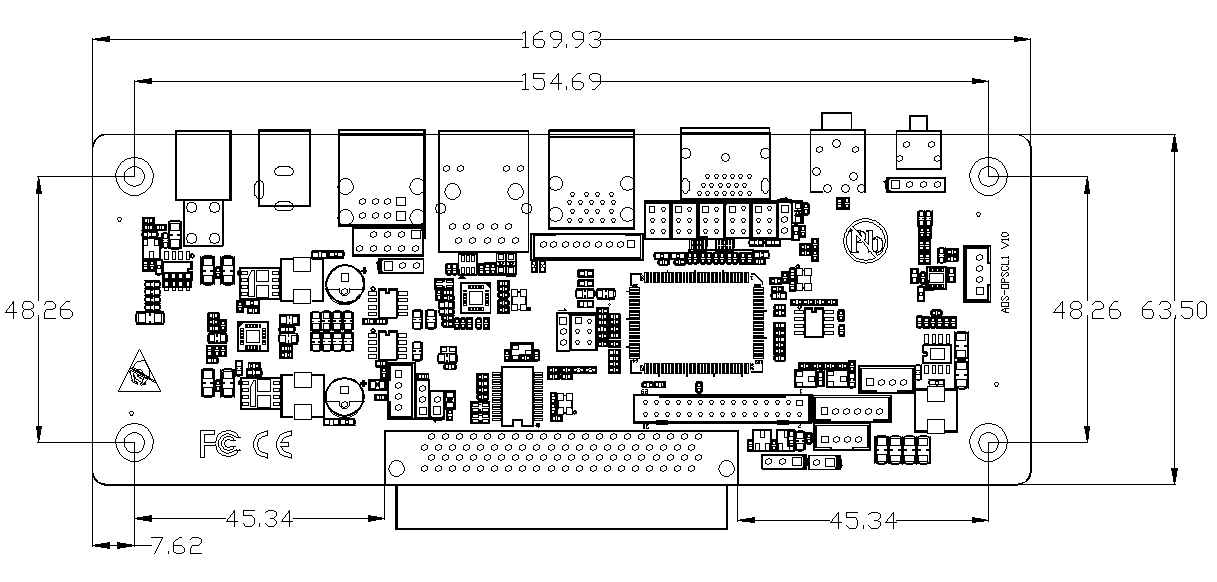

Drawing
