AOS-OPSCHPL
Product introduction：
Display | JLVDS1 JS1-6 | 1 ×LVDS1/DP（optional） 1 ×HDMI |
I/O | USB2.0 USB 3.0 Ethernet port Switch JUART1 J-SW1 JP9 JP10 JINCN1 JGHOST1 JPWRLED1 JDET OPS interface Audio JCTL1 | 5× USB2.0 1xUSB3.0 1XRJ45 1000M Internet access 1XPOWER switch 1×COM TTL（4pin，2.0 space， signal definitions：VCC(5V) GND U-TX U-RX） 1× Switch pin / reset（signal definitions ：PS-ON，GND；REST,GND） 1X3PIN 3.3V/5V power optional (signal definition：3.3V（1-2）,5V(2-3)) 1X2PIN 12V power (signal definition：12V(1-2) JP9 according to display to choose voltage 1X6PIN High voltage supply power (signal definition：19V 19V PWM BLK_EN GND GND) 1X2PIN one key recovery 1X2PIN power light 1X2PIN (signal definition：FAN_CTRL LED_DET) OPS 80 pin 1 × LINE-OUT 3.5 standard interface, supports dual-channel output |
Power | Input | DC JACK (19V, 2.5mm inner diameter) on-board 4pins socket（12 ～ 19V） |
Physical Parameter | Dimension | Thin Mini-ITX，133x44mm |
Condition | Temperature Humidity | Working temperature：0°C ~60°C Storage temperature：-20~70°C 5%~90% No condensation |
Ordering Information
Sales Model Specification
AOS-OPSCL1 JAE OPS 80PIN, 2 pcs USB2.0 port, 1 pc USB3.0 port, LVDSoutput
AOS-OPSCL1A RJ45 100M ethernet port, 4 pcs USB2.0 port, 1 pc USB3.0, HDMI/LVDS (optional)，3W power amplifier

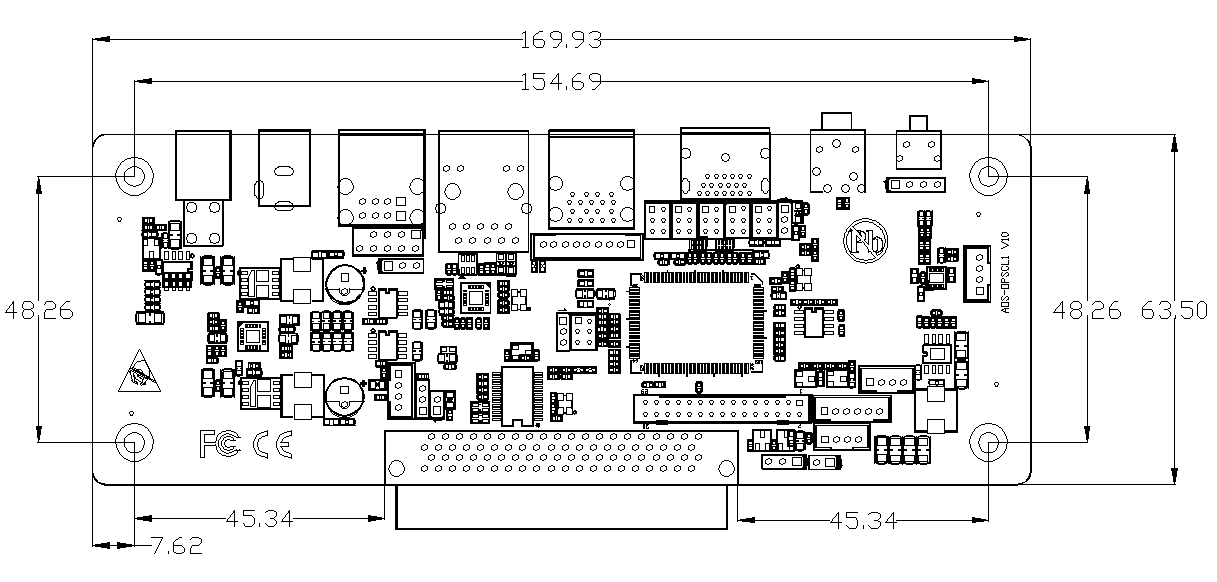

Drawing
