AOS-OPSCB
Product introduction：
Display | VGA HDMI | 1 ×VGA 1 ×HDMI（with pin） |
I/O | USB2.0 USB 3.0 Ethernet port Switch JUART J-SW1 JCOM1 JUSB1 J-SW2 JO5 JDET OPS Interface Audio | 4× USB2.0 (3 pcs pin)， 1xUSB3.0 1XRJ45 RTL 8152B 100M ethernet port 1XPOWER botton 1×COM TTL（4pins，2.0 spaces，signal definition: VCC(5V) GND U-TX U-RX） 1× switch pin/reset（signal definition: PS-ON，GND；REST,GND） 1× COM RS232 1× USB2.0（VCC,N,P,GND） 1×switch detection pin (4pin, signal definition: PSON GND PSOK VCC3) 1X3PIN 3.3V/5V optional power (signal definition: 3.3V（1-2）,5V(2-3)) 1X2PIN (signal definition: FAN_CTRL LED_DET) OPS 80 pin 1 × LINE-OUT 3.5 standard interface, supports dual-channel output |
Power | Input Rated Power | DC JACK (19V, 2.5mm内径) on-board 4pins socket （12 ～ 19V） |
Physical Parameter | Dimension | Thin Mini-ITX，105x65mm |
Condition | Temperature Humidity | Working temperature：0°C ~60°C Storage temperature：-20~70°C 5%~90% No condensation |
Ordering Information
Sales Model Specification
AOS-OPSCB RJ45 100M ethernet port, 4 pcs USB 2.0, 1 pcs USB3.0, VGA/HDMI pouput, 1 pcs RS232 COM

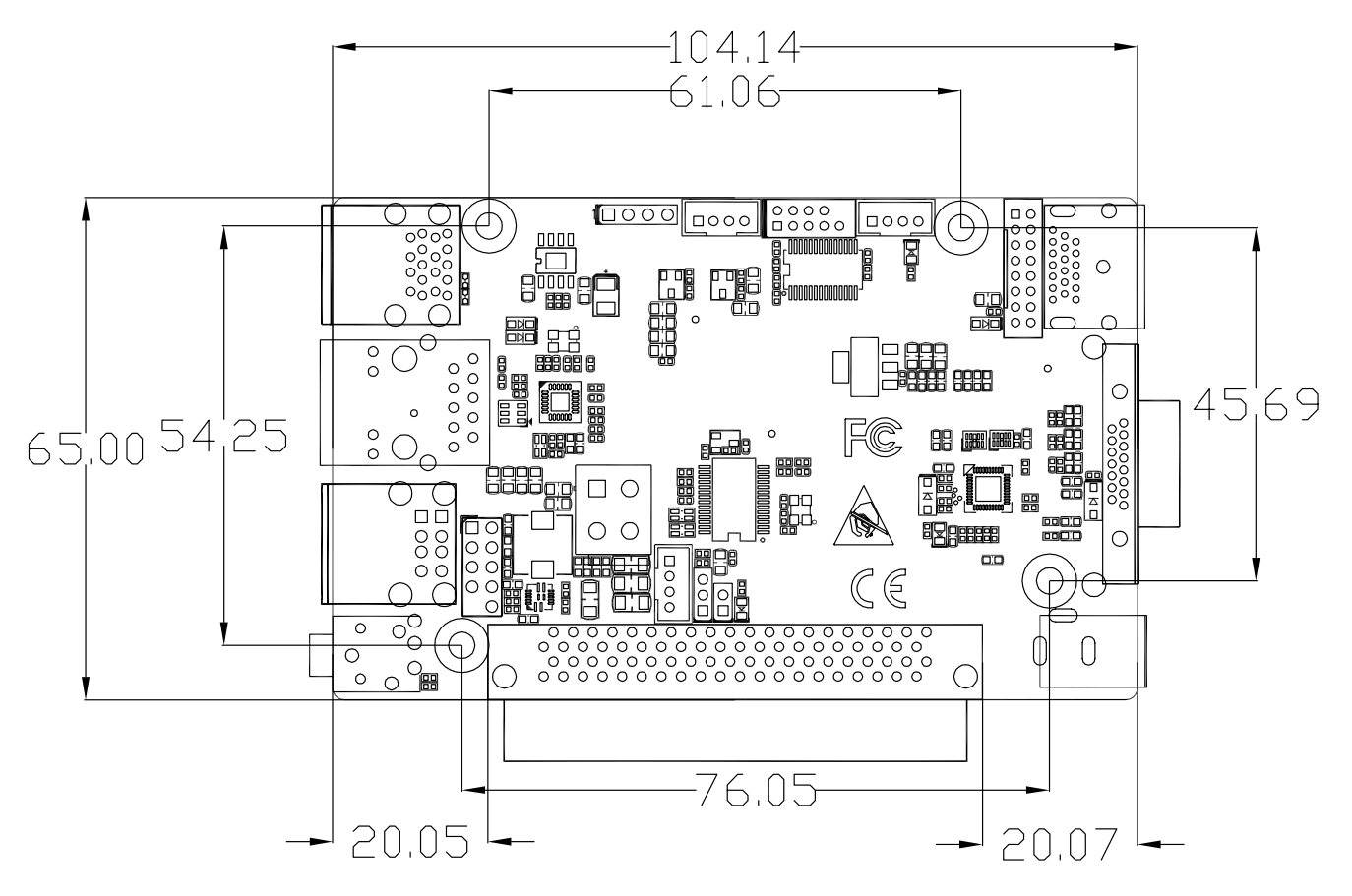

Drawing
