chip set

Intel® SOC

BIOS

BaiAo supports features such as diskless startup, network wake-up, power-on startup, and watchdog.

internal storage

capacity

16GB SO-DIMM DDR4 2400 MHz memory ,  Max.32GB

memory

M.2

1Xm.2 NGFF/NVME

show

Integrated Graphics Output

HDMI-OPS interface

1 ¡Á HDMI (Maximum supported resolution: 3840x2160 at 60 Hz)

1 ¡Á TYPE-C (Maximum supported DP resolution: 3840x2160 at 60 Hz)

network

Chip

WIFI

1 ¡Á 10/100/1000M

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

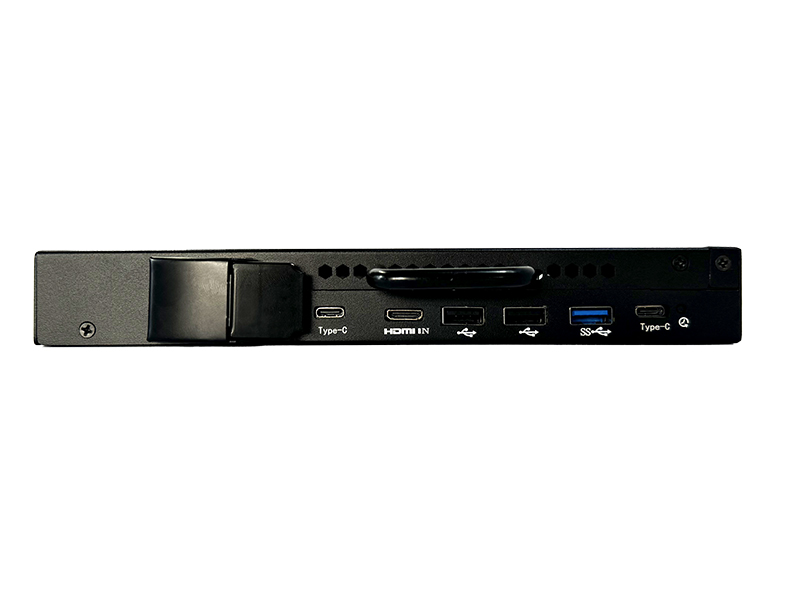

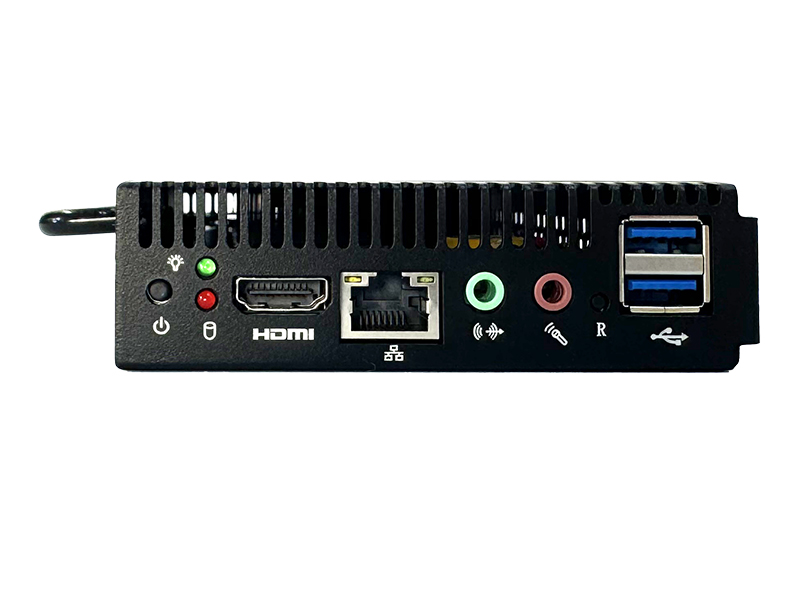

I/O

USB 3.2

USB 2.0

Type-c

Power button

OPS Interface

COM

RJ45

LED lamp

One-click restoration

DC JACK

audio frequency

3x USB3.2

2 xUSB 2.0

2x Type-C ports (1*TYPE-C optional with full functionality + 1*USB)

1 ¡Á power button

1 ¡Á OPS interface (80 pins)

1 ¡Á RS232 COM (optional)

1 ¡Á RJ45

1 x power indicator light & 1 x hard drive indicator light

            1 x One-click restore of the hardware system

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC  12~19V

45-90W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

220mm (L) x 100mm (W)x30mm(H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -20¡ãC to 70¡ãC

5%~90% no condensation

operating system

edition

Windows 10/Windows 7 / Ubuntu/ Linux

AOS-SOAUI41SHH

Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD            Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD

AOS-SOAUF41SHH

Intel I5 1240P/12450H/1235U processor, 4GB RAM, 128GB SSD

Intel I5 1340P/13450H/1335U processor, 4GB RAM, 128GB SSD

AOS-SOAUJ41SHH

Intel I7 1260P/12700H/1255U processor, 4GB RAM, 128GB SSD

Intel I7 1360P/13620H/1355U processor, 4GB RAM, 128GB SSD
