AOS-SOAUF82SXPG
Product introduction£º
Product introduction
Dedicated Graphics Card OPS Hot-swappable PC
Intel@ Alderlake-U i5-13500H CPU (i3/i5/i7 optional)
Supports DDR4 memory, maximum 32GB
Supports graphics cards GTX 1030 2G/1050TI 4G/RTX 3050 6G
Supports 4¡ÁUSB 3.0, 2¡ÁUSB 2.0, 1¡ÁType-C
1*HDMI/1*DP (integrated graphics), 1*HDMI/1*DVI (dedicated graphics)
Supports HDMI IN signal acquisition
Supports 1¡ÁRJ45 Gigabit Ethernet port, dual-band WiFi + Bluetooth (optional)
Supports watchdog timer, Wake-on-LAN, and timed power-on
Product complies with CE, FCC, and RoHS standards
Specification
Processor | CPU | Onboard Intel Alderlake-U I5-13500H 12 Core 16 thread CPU ( I3 1115G4/ I5 1135G7/ I7 1165G7 / I3 1220P/ I3 1315U/ I5 1240P/ I5 13420H / I7 1260P/ I7-13700H) CPU Optional |
Chipset | SOC | |
BIOS | AMI 32Mbit, support diskless boot, wake on LAN, power-on boot, watchdog etc. | |
Memory | Capacity | 8G 2¡ÁSODIMM 4G,Support DDR4 2400MHz Max:64GB |
Storage | M.2 Interface SATA Interface | NVME 256G SSD SSD(Optional) |
Display | Outout/Input
Discrete Graphics card(Optional)
| 1¡ÁDP+2¡ÁHDMI +1¡ÁDVI Output, Support Synchronous/Asynchronous Triple Funtion 1XHDMI IN Input£¨Signal Collection£©
GTX 730 2G/4G GTX550 2G/4G GTX 1030 2G/4G GTX 1050 2G/4G GXT 1050TI 4G RTX 3050 6G RTX4060 8G |
Internet | LAN WIFI | 1¡Á RTL8111H(2¡ÁRJ45 Optional) 1 x WIFI Module support 802.11b/g/n £¨M.2 half card£© |
I/O | USB 3.0 USB2.0 Type-c RJ45 HDMI IN HDMI DVI DP HDMI 80pin Power button Reset LED DC JACK One-Click Restore Audio | 4¡Á USB3.0 2¡Á USB2.0 1¡Átype-c£¨Can optional to lan port£© 1¡ÁRJ45 1¡ÁHDMI IN£¨Optional£© 1¡ÁHDMI£¨Discrete Graphics£© 1¡ÁDVI£¨Discrete Graphics£© 1¡ÁDP£¨Integrated Graphics£© 1¡ÁHDMI£¨Integrated Graphics£© 1¡ÁOPS Computer 80pin 1¡Á power button 1 ¡Á Reset button 1 x Power indicator &1x hard disk indicator 1 ¡Á DC JACK 1 x One-click Restore 1 ¡Á LINE-OUT & MIC-IN, Integrated 6 audio channel with ALC662 chip |
Power | Input Rated power | DC 19V 90-200W |
Watchdog | Output Interval | Interrupts, system restart 255 level timing interval |
Physical parameters | Dimensions | 180mm (L) x 206mm (W) x 38mm (H) |
Environment | Temperature Humidity | Working temperature£º0¡ãC ~50¡ãC Storage temperature£º-20~70¡ãC 5%~90% No condensation |
Operating system | Version | Windows 11/ Windows 10/ Linux |
Ordering Information Intel 11~13th Generation CPU
Sale Model | illustrate |
AOS-SOTUI81SXPG | Intel I3 1115G4 8G 128G SSD GTX1060 6G |
AOS-SOTUF81SXPG | Intel I5 1135G7 8G 128G SSD GTX1080 4G |
AOS-SOTUJ81SXPG | Intel I7 1165G7 8G 128G SSD RTX2060 6G |
AOS-SOAUI82SXPG | Intel I3 1215U 8G 256G SSD RTX 3050 6G |
AOS-SOAUF81SXPG | Intel I5 1240P 8G 128G SSD RTX2080 8G |
AOS-SOAUJ82SXPG | Intel I7 1260P 8G 128G SSD RTX3060 12G |
AOS-SOAUI81SXXPG | Intel I3 1315P 8G 128G SSD RTX3060 8G |
AOS-SOAUF82SXXPG | Intel I5 13500H 8G 256G SSD GTX1030 2G |
AOS-SOAUF82S2XPG | Intel I5 1335U 8G 256 SSD GTX1050TI 4G |
AOS-SOAUJ82SXXPG | Intel I7-13600H 8G 128G SSD RTX4060 8G |

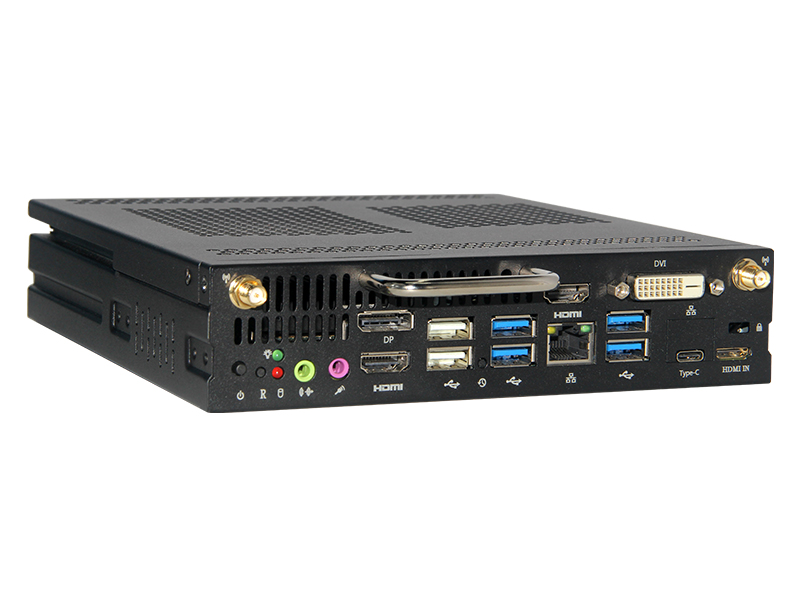

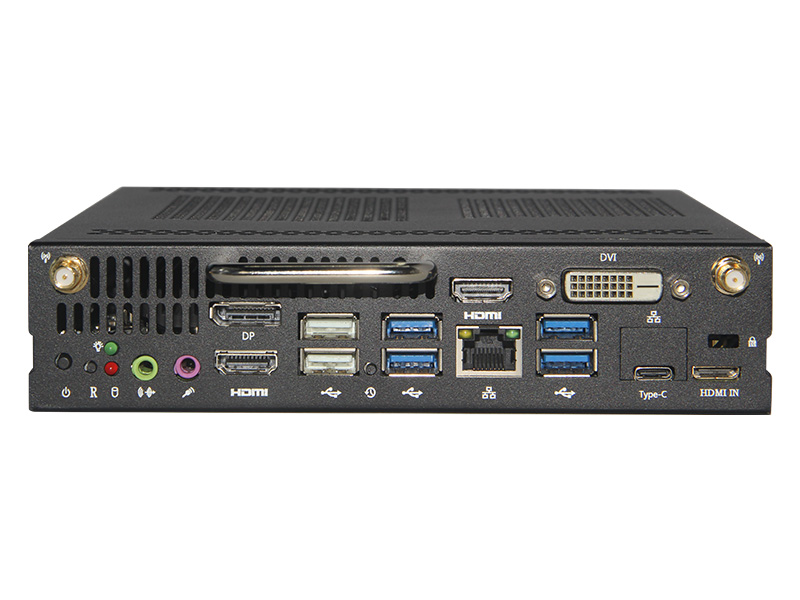

Appearance 1: GTX 1030 2G graphics card (HDMI + DVI)

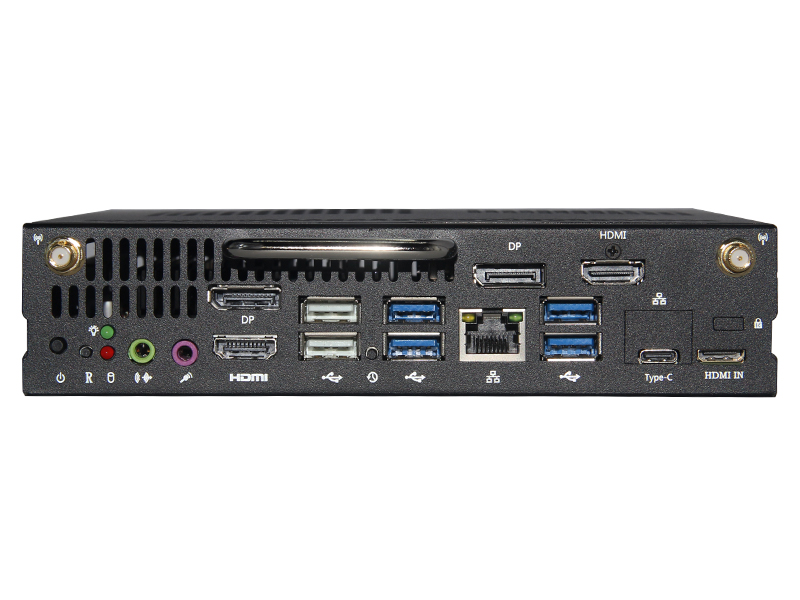

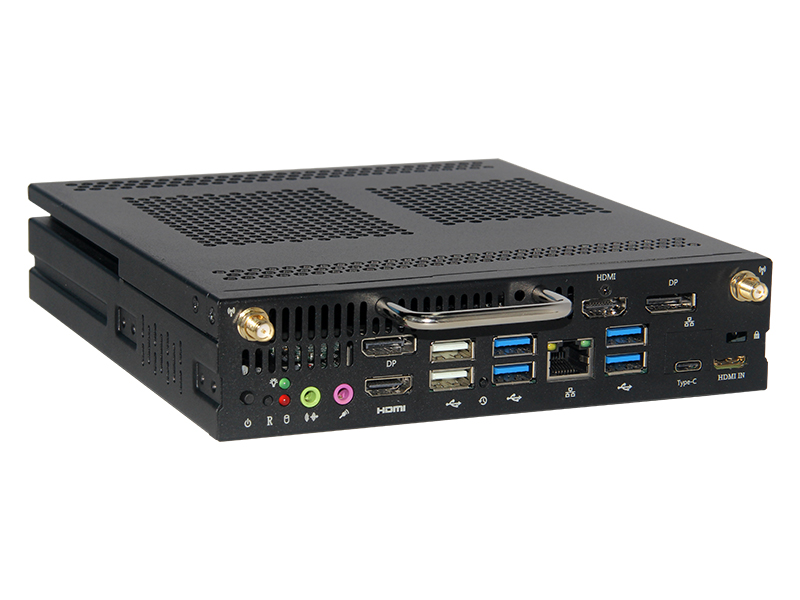

Appearance 2: GTX 1050TI 4G graphics card (HDMI+DP)

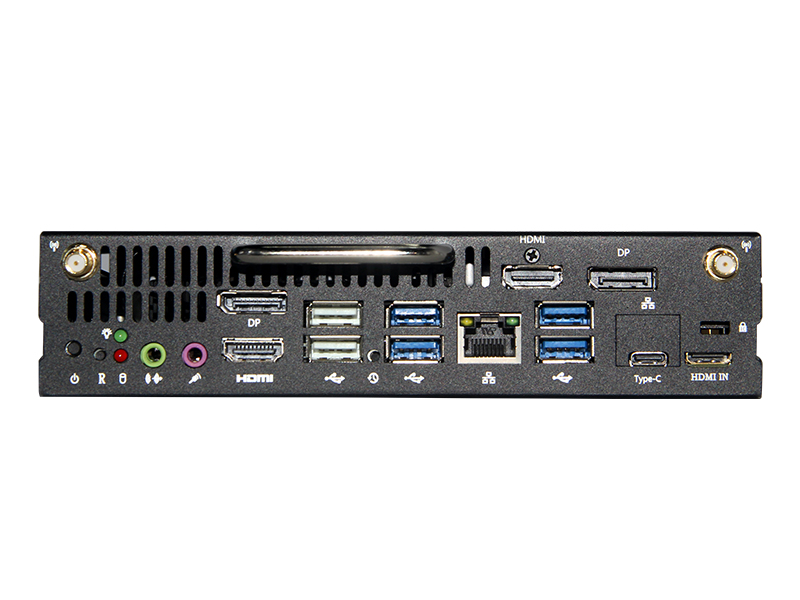

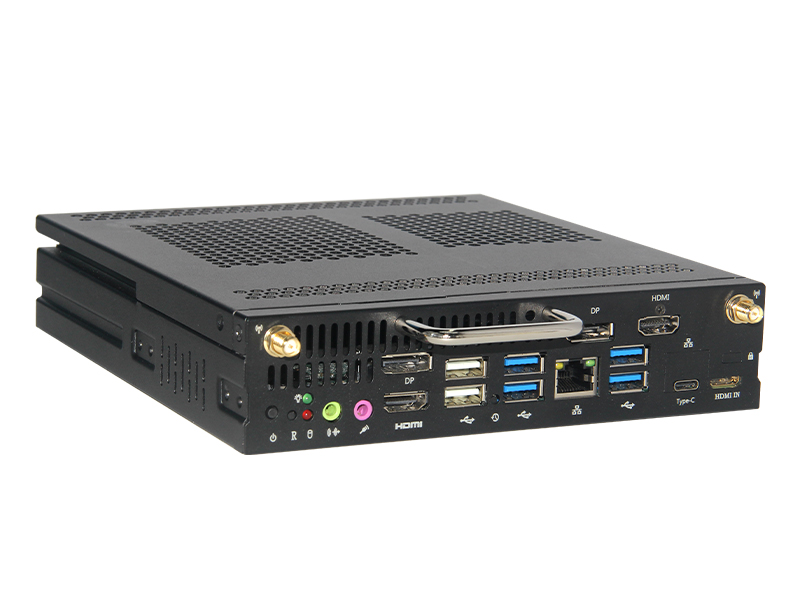

Appearance 3: GTX 3050 6G graphics card (DP+HDMI)
Dimensional drawing
Application areas
Suitable for education, restaurants, hotels, shopping malls, company meetings, government information disclosure, design, programming, business office and other fields.
