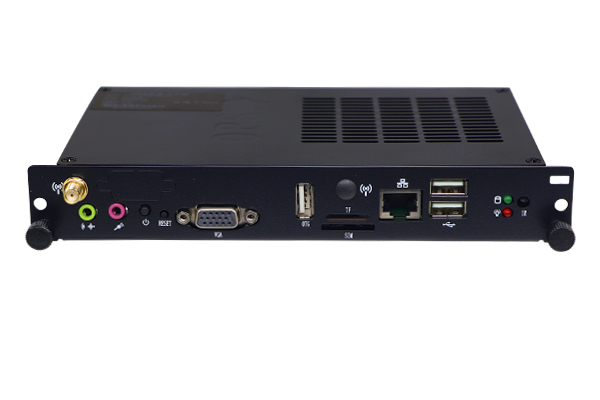

AOS-SOR38432C
Product introduction：
Specifications
processor | CPU | ARM Series ROCKCHIP RK3288 quad-core 1.8GHz |
Chipset | SOC | |
memory | capacity | 2GB SO-DIMM DDR3 1333 MHz memory , Max.4GB |
storage | EMMC TF Card | 32G, Max.64GB Support for 64G |
display | Chipset output
| CPU integrated graphics card HD Graphics VGA-HDMI single-display, dual-display / display). 1 × VGA (maximum support resolution:1920×1080). 1 ×HDMI (maximum support resolution:3840x2160). |
Internet | chip WIFI | 1 × RTL8211E 10/100/1000M（RJ45 LAN） 1 x AP6330 positive-base WIFI2.4G/5G dual-mode plus BT |
I/O | USB 2.0 Power button Reset OPS interface LED light IR DC JACK audio | 2× USB2.0(up to 3 groups supported). 1 × power button 1 × upgrade 1 × OPS interface(80pin). 1 x LED indicator light 1 x IR infrared 1 × DC JACK 1 × LINE-OUT and MIC-IN with integrated 6-channel sound ALC662 sound card chip |
power supply | input Rated power consumption | DC 12~19V 30W |
The physical parameters | size | 180mm (L) x 119mm (W)x30mm(H) |
environment | temperature humidity | Operating temperature:0to50degreesC Storage temperature:-20 to 70degreesC 5% to 90% no condensation |
operating system | version | Android5.1/ / Android 6.0/ Linux |
Order information
Sales model | illustrate |
AOS-SOR3828C | RK3288 1.8GHz 2G memory 8G EMMC |
AOS-SOR38216C | RK3288 1.8GHz 2G memory 16G EMMC |
AOS-SOR38432C | RK3288 1.8GHz 4G memory 32G EMMC |
Applications
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government affairs and other fields.
