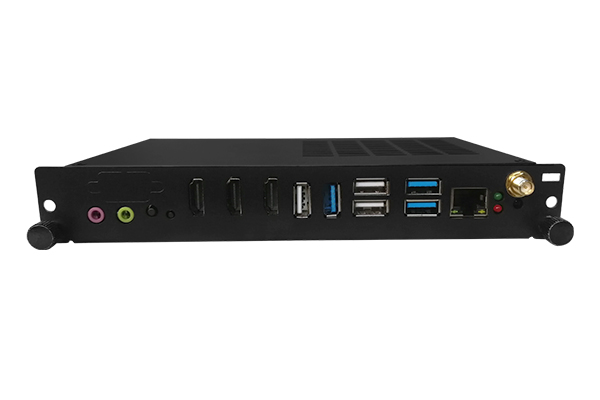

AOS-SOR39P48C
Product introduction：
Processor | CPU | ARM series ROCKCHIP RK3399 PRO |
Chipset | Intel® SOC | |
Memory | Capacity | 2GB DDR4 2133MHz memory, Max.4GB NPU 2G DDR3L |
Storage | EMMC M.2 Interface Sata Interface TF Card | 8G, Max. 128GB 128GB SSD 500 GB HDD 64GB |
Display | Graphics Output | Integrated Graphics HDMI+HDMI+LVDS/EDP (Single / Dual Display, Synchronous / Asynchronous Display) 1 × LVDS （Max. Resolution: 1920x1080） 1 × HDMI （Max. Resolution: 3840x2160） |
| Function | Mini PCIE COM Interface Power Amplifier | 1 x Mini PCIE (3G / 4G) 1 x RS232+1 x RS485 5W |
Ethernet | Lan WIFI | 1 × RTL8111E 10/100/1000M (RJ45 Lan), optional dual ethernet interface 1 x AP6356S AMPAK, Wi-Fi 2.4G/5G dual mode+BT |
I/O | USB 2.0 USB 3.0 Infrared Ray Power button Reset OPS Interface LED Light DC JACK Audio | 2 x USB 2.0 (Max. 3 pcs USB) 3 × USB 3.0 1 × IR 1 × Power button 1 x Upgrade 1 × OPS Interface (80 pins) 1 x Power LED 1 × DC JACK 1 × LINE-OUT & MIC-IN, Integrated 6 sound channels ALC662 audio card chip |
Power | Input Rated Power | DC 12~19V 20W |
Physical Parameter | Dimension | 180mm (L) x 119mm (W) x 30mm (H) |
Condition | Temperature Humidity | Work Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No condensation |
Operating System | Vision | Android 8.0/ Android 9.0 / Linux |
Ordering Information
Sales Model | Specification |
AOS-SOR39P48C | RK3399Pro 1.8GHz 4G Memory 8G EMMC |
AOS-SOR39P432C | RK3399Pro 1.8GHz 4G Memory 32G EMMC |
AOS-SOR39P464C | RK3399Pro 1.8GHz 4G Memory 64G EMMC |
Application
Apply to education, restautants, hotels, shipping malls, corporate meeting, government affairs, etc.
