Chipset

Memory

Capacity

4GB SO-DIMM DDR4 2400MHz memory, Max.16GB

Storage

EMMC

TF Card

16G, Max. 64G

Max. 64G

Display

Graphics

Output

Integrated Graphics

VGA+HDMI (Single / Dual Display, Synchronous / Asynchronous Display)

1 ¡Á VGA   £¨Max. Resolution: 1920¡Á1080£©

1 ¡Á   HDMI   £¨Max. Resolution: 3840x2160£©

Ethernet

Lan

WIFI

1 ¡Á RTL8111E   10/100/1000M£¨RJ45 LAN£©

1 x AP6330 AMPAK WIFI 2.4G/5G dual mode + BT

I/O

USB 2.0

Power button

Reset

OPS Interface

LED Light

DC JACK

Audio

2 x USB 2.0 (Max. 3 pcs USB)

1 ¡Á Power button

1 ¡Á Upgrade

1 ¡Á OPS Interface (80 pins)

1 x LED light

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN, Integrated 6 sound channels ALC662 audio card chip

Power

Input

Rated Power

DC   12~19V

30W

Physical

Parameter

Dimension

180mm (L) x 195mm (W) x 42mm (H)

Condition

Temperature

Humidity

Work Temp.: 0¡ãC ~50¡ãC, Storage Temp.: -20~70¡ãC

5%~90% No condensation

Operating System

Vision

Android 5.1 / Android 7.1 / Linux

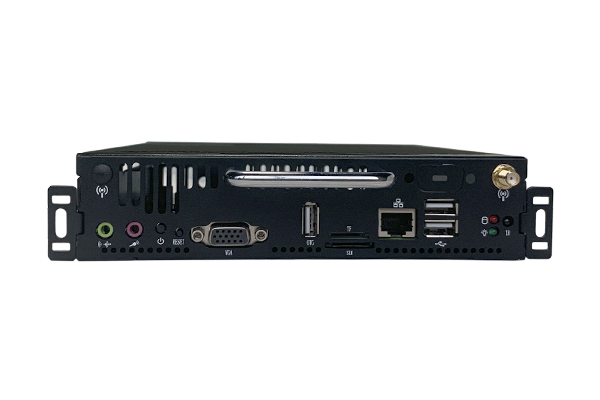

AOS-SOR38464H

RK3288        1.8GHz         4G Memory          64G EMMC
