chip set

Intel® SOC

BIOS

AMI 32Mbit, supporting diskless boot, network wake-up, power-on startup, watchdog, and other functions

internal storage

capacity

4GB SO-DIMM 1xDDR4 2400 MHz memory ,  Max.32GB

memory

SATA interface

M.2

2.5-inch HDD (optional)

1¡Á 128GB SSD M.2 NGFF/NVME (optional)

show

Integrated Graphics

output

CPU-integrated graphics card: Graphics for 12th Gen/Iris Xe

2 HDMI + Type-C ports for single, dual, or triple displays (ͬ²½/asynchronous/segmented display modes)

2 ¡Á HDMI 2.0 OUT (maximum supported resolution: 4096¡Á2304 at 60 Hz)

Supports optional 1 HDMI OUT + 1 HDMI IN functionality

network

Chip

WIFI

1 ¡Á 10/100/1000M (2*RJ45 ports optional)

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

I/O

USB 3.1

Type-c

Type-c

Power button

OPS Interface

COM

LED lamp

One-click restoration

DC JACK

audio frequency

3x USB3.1

1x Type-C (optional RJ45 LAN)

1x Type-C (Ö§³Ö DP display + USB 3.1)

1 ¡Á power button

1 ¡Á OPS interface (80 pins)

1 ¡Á RS232 COM (optional)

            1 x power indicator light & 1 x hard drive indicator light

            1 x One-click restore of the hardware system

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC  12~19V

45-90W

watchdog

output

margin

Interrupt, system restart

Level 255 Fixed Time Interval

Physical Parameter

size

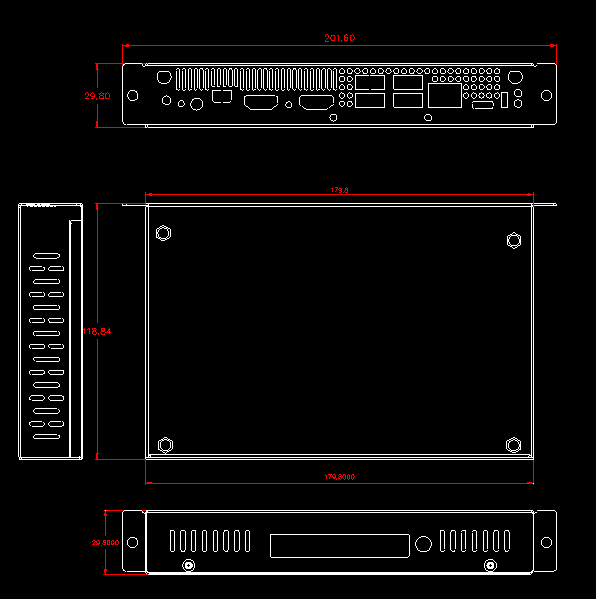

180mm (L) x 119mm (W)x30mm(H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC   Storage temperature: -20¡ãC to 70¡ãC

5%~90% no condensation

operating system

edition

Windows 10/Windows 11 / Linux

AOS-SOAUI41SC

Intel I3 1215U,1.2 GHz, 4 GB RAM, 128 GB SSD

AOS-SOAUF41SC

Intel I5 1240P/12450H/1235U processor, 4GB RAM, 128GB SSD

Intel I5 1340P/13450H/1335U processor, 4GB RAM, 128GB SSD

AOS-SOAUJ41SC

Intel I7 1260P/12700H/1255U processor, 4GB RAM, 128GB SSD

Intel I7 1360P/13620H/1355U processor, 4GB RAM, 128GB SSD
